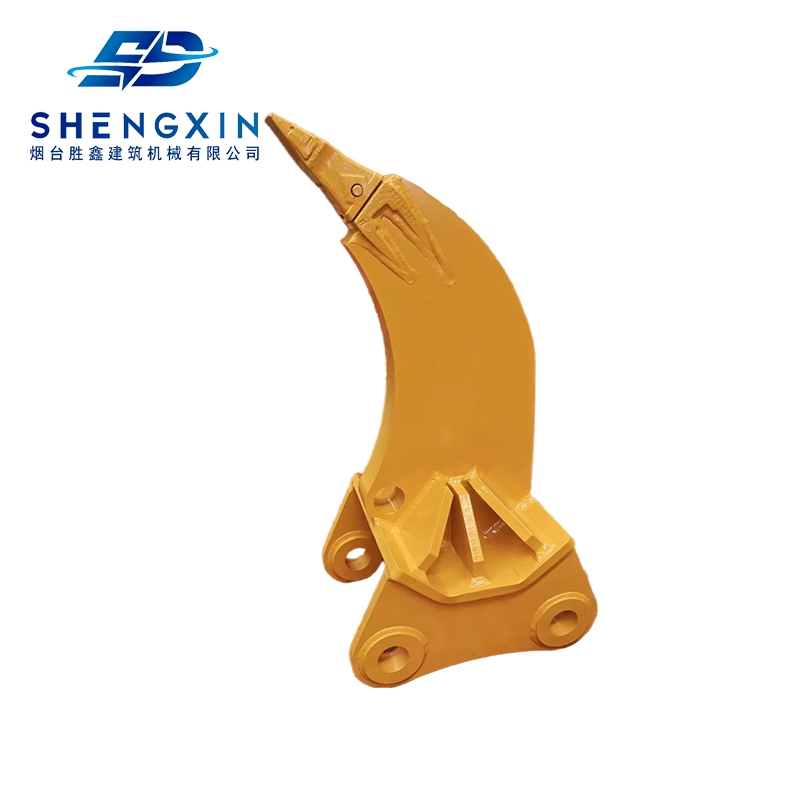

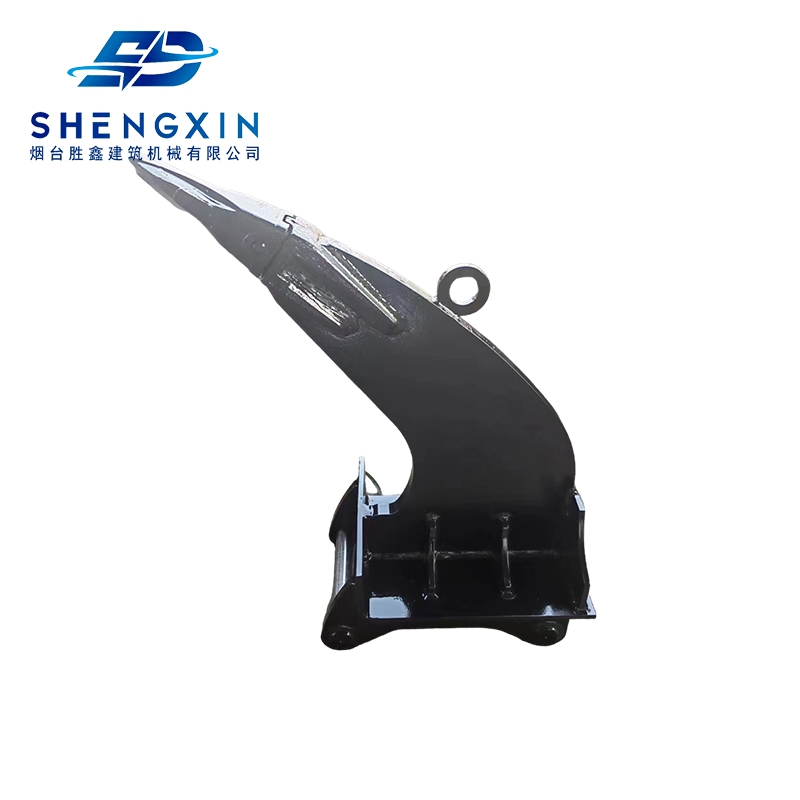

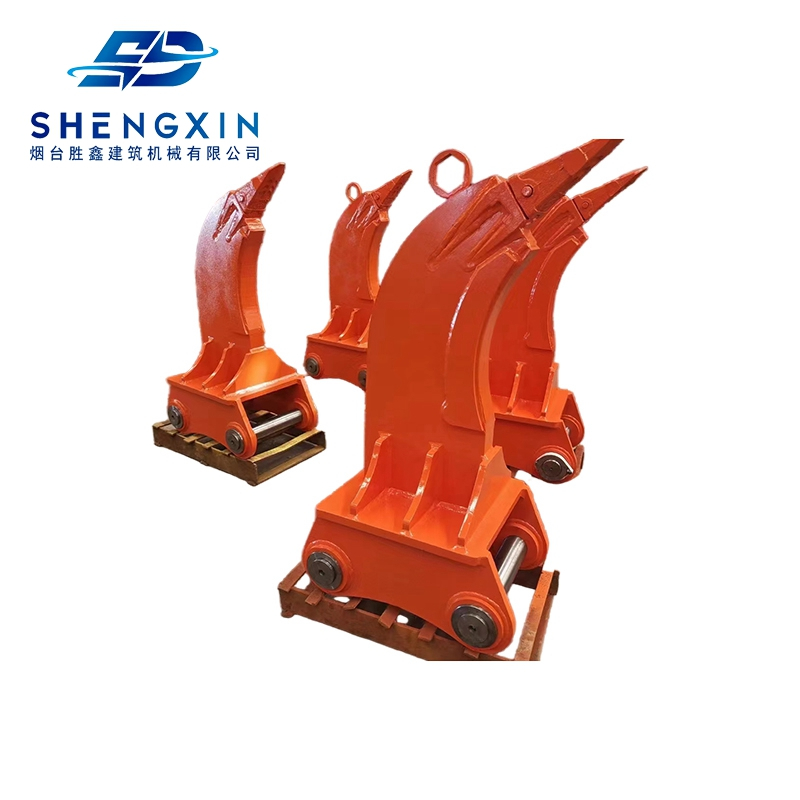

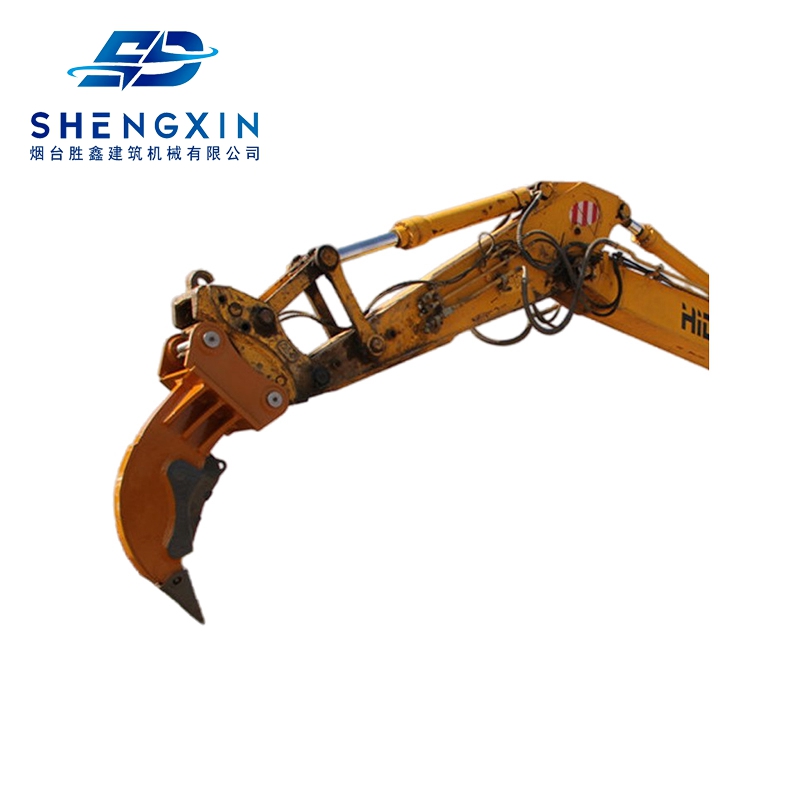

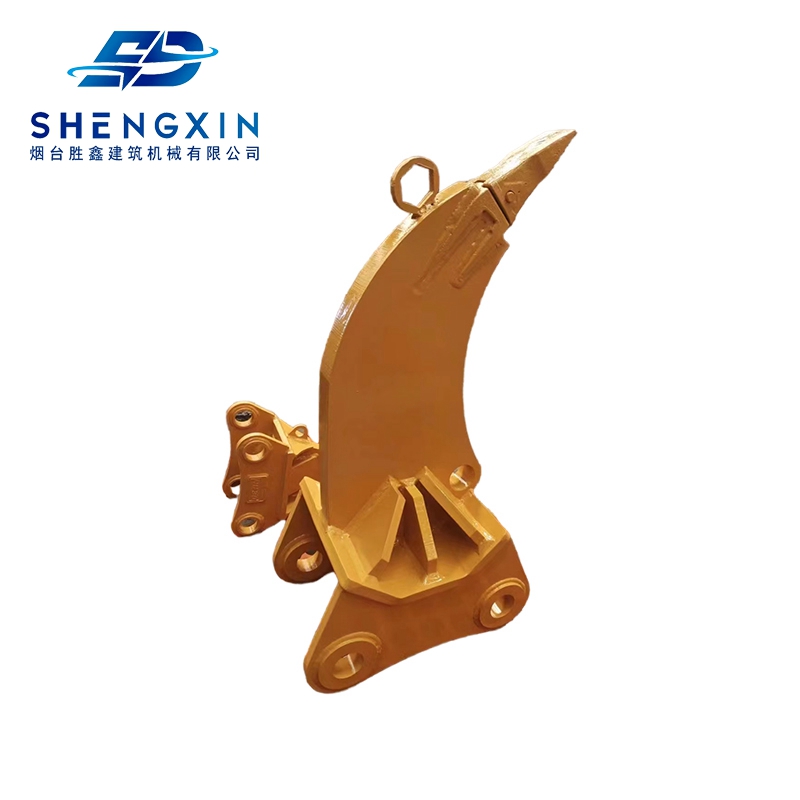

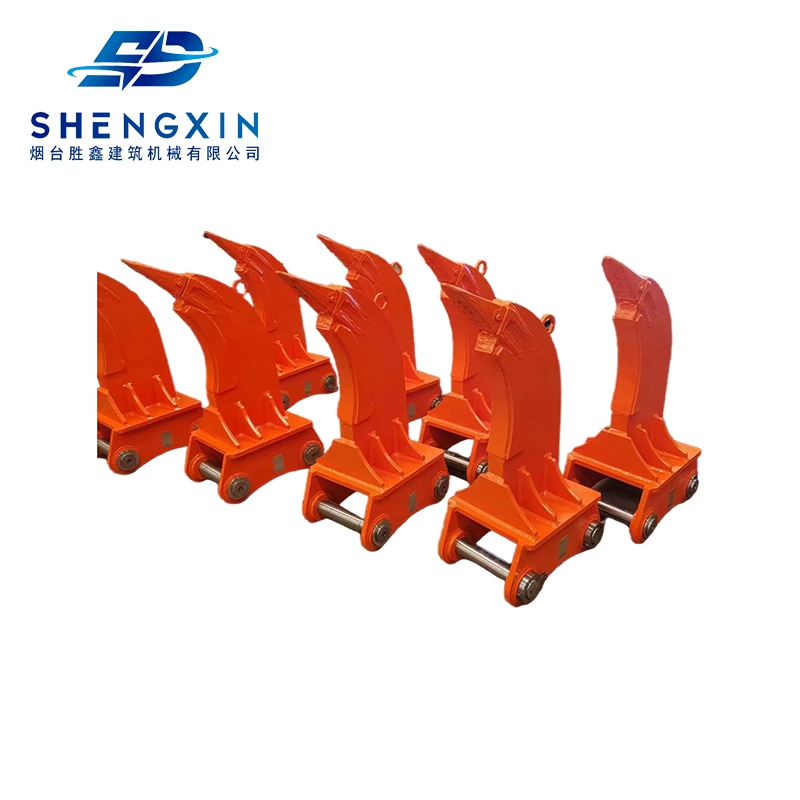

Product features:
1. The soil loosener is manufactured from high-strength manganese steel, exhibiting superior performance and exceptional durability.
2. It is compatible with excavators of various tonnage configurations, meeting diverse assembly requirements.
3. Premium-grade front bucket teeth are employed, with reinforced critical components to ensure product quality and operational safety.
Item/Model
| Unit | S02 | S04 | S06 | S08 | S10 | S14 | S17 | S20 | S24 |
Pin To Pin Distance
| mm | 265 | 310 | 390 | 465 | 520 | 570 | Customized | Customized | Customized |
Overall With
| mm | 375 | 420 | 570 | 665 | 740 | 740 | 820 | Customized | Customized |
Overall Height
| mm | 390 | 950 | 1180 | 1260 | 1380 | 1380 | 1470 | 1660 | 1800 |
Transmission Path | mm | 40-50 | 50-55 | 60-70 | 70-80 | 80-90 | 80-90 | 90-110 | Customized | Customized |
Dipper Width
| mm | 150-180 | 180-200 | 200-315 | 300-350 | 360-420 | 360-420 | 400-500 | Customized | Customized |
Pate Thickness
| mm | 50 | 55 | 65 | 80 | 90 | 90 | 90 | 120 | 120 |
Teeth Thickness
| type | FR50 | DH150 | DH220 | D85C | 4T5502-2 | 4T5502-2 | 4T5502-2 | PC700 | PC1000 |
Weight
| kg | 60 | 160 | 245 | 420 | 620 | 775 | 825 | Customized | Customized |
Applicable Excavator
| ton | 4-6 | 5-9 | 9-16 | 16-23 | 23-30 | 30-39 | 40-49 | 50-64 | 65-90 |
