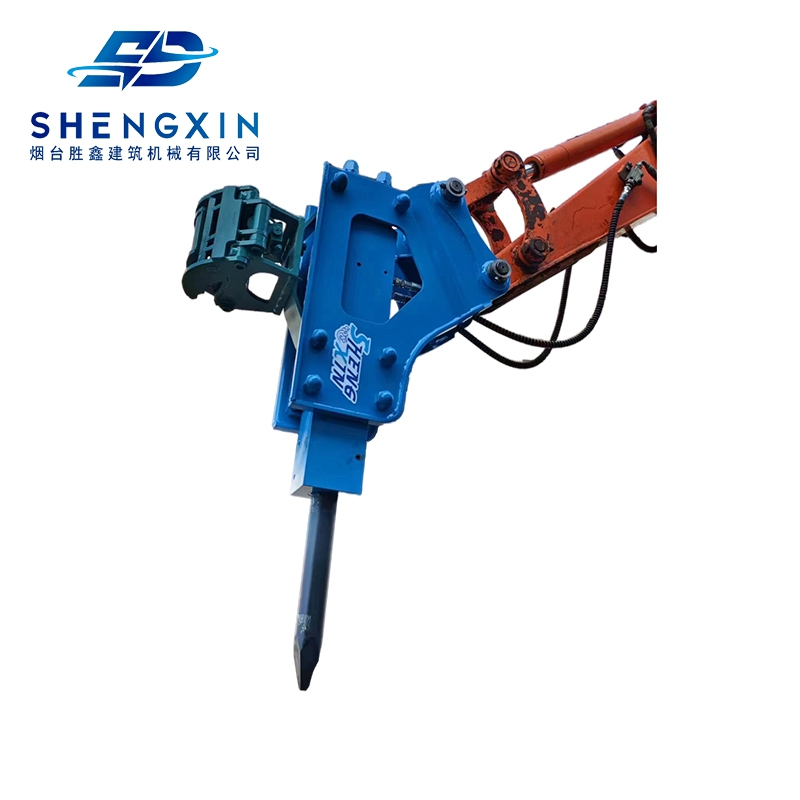

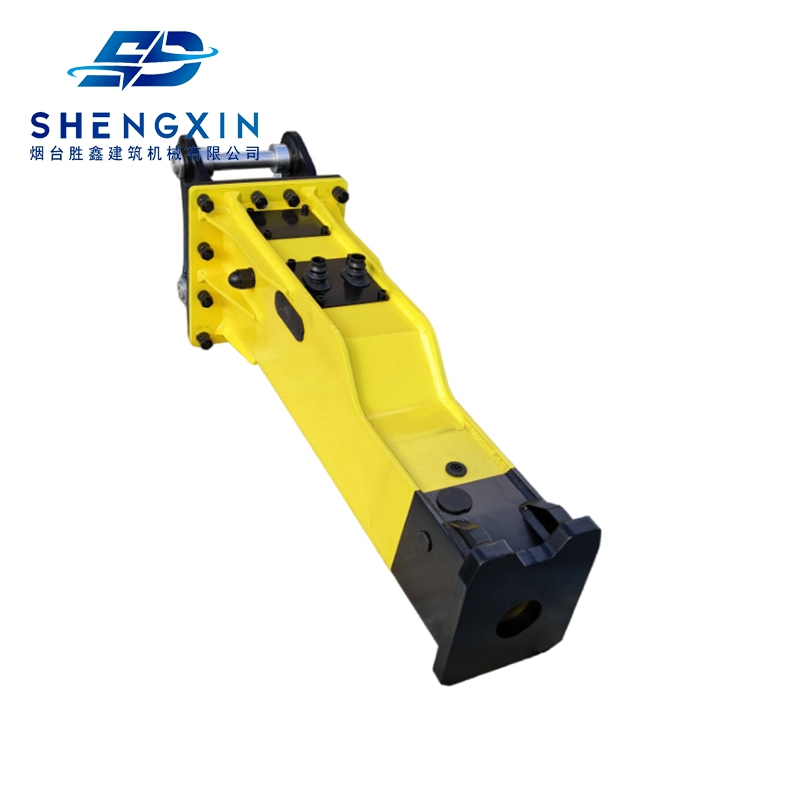

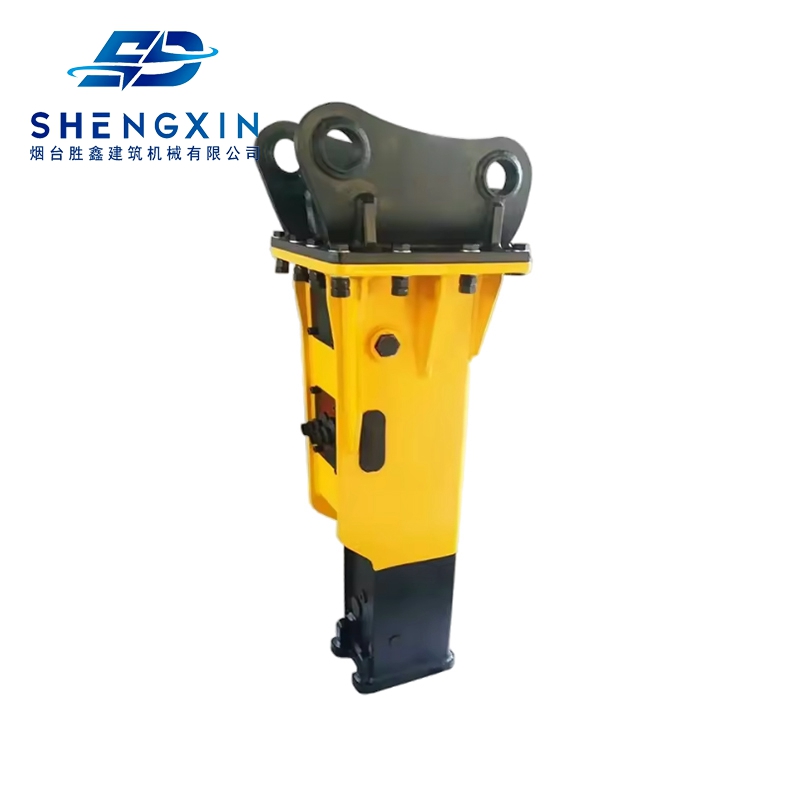

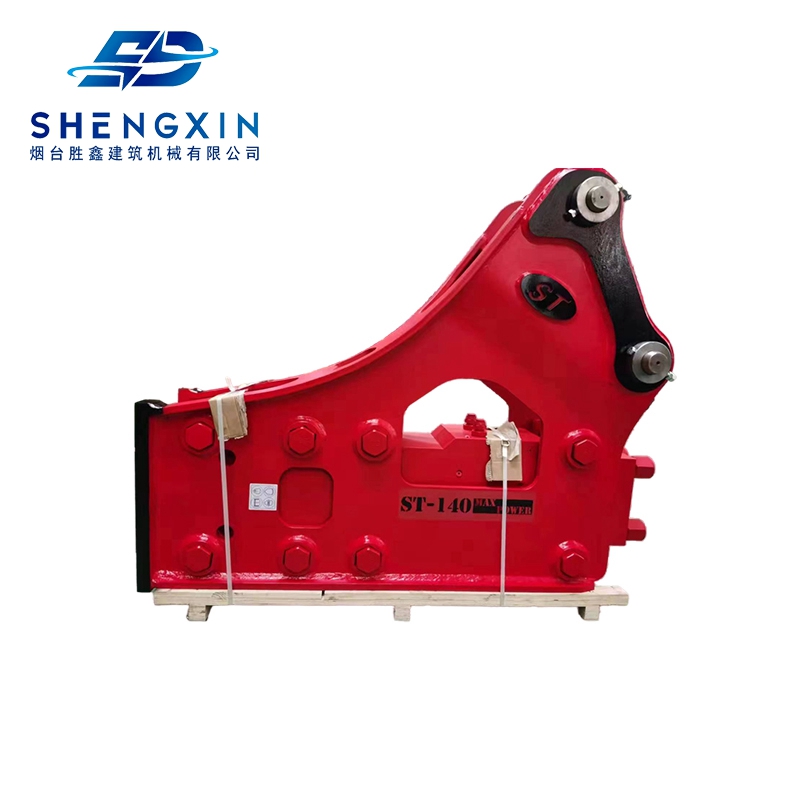

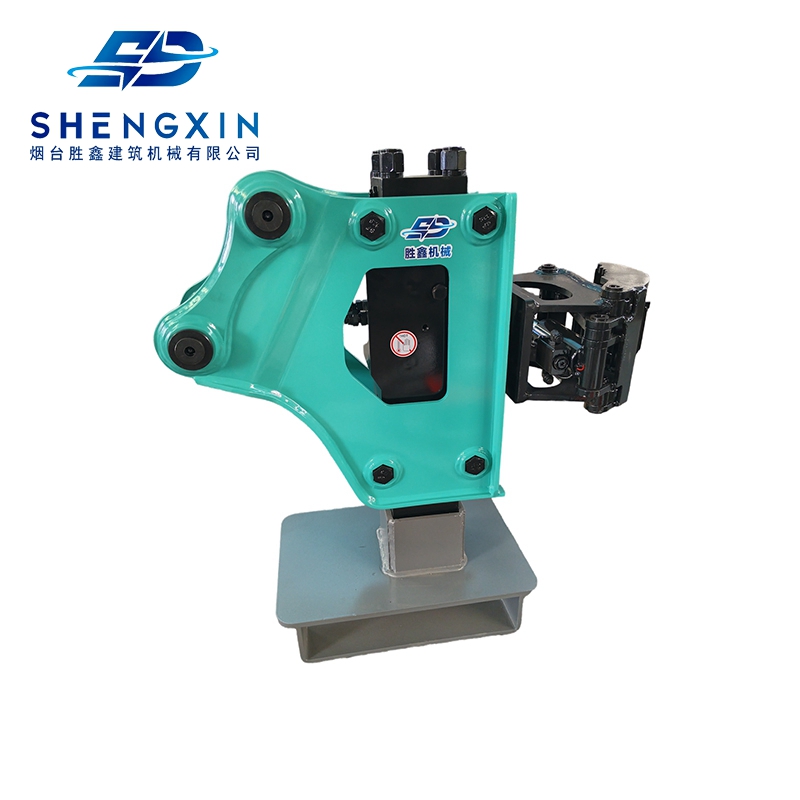

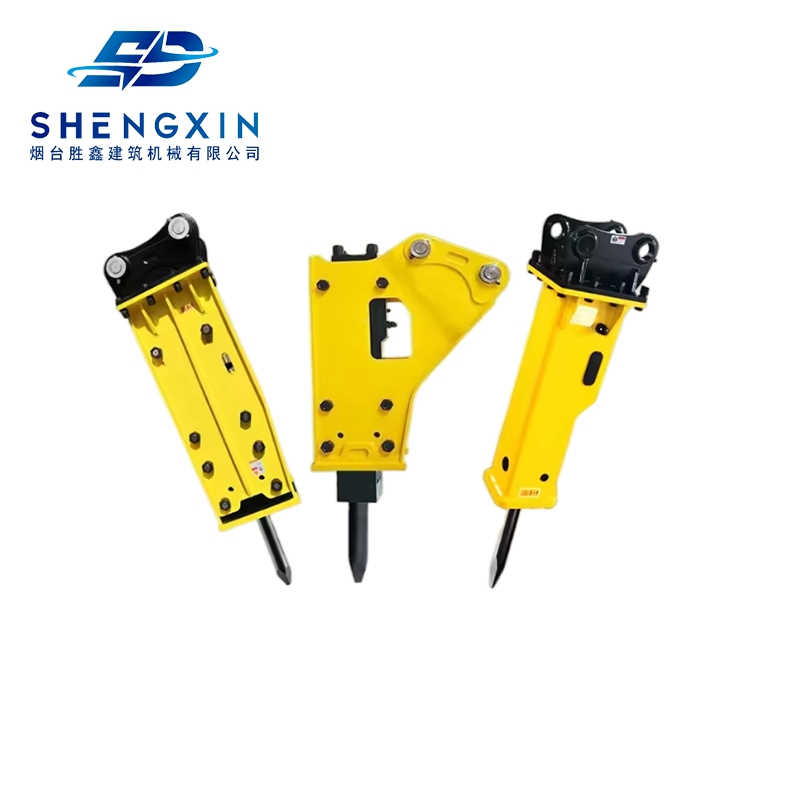

Hydraulic Breaker

Mining - Mining, the second breakthrough: Metallurgical slag removal, furnace and foundation dismantling
Roads - Restoration, crushing, foundation engineering: Railway tunnel and bridge demolition, building and structure dismantling, reinforced concrete demolition
Ship repair & Removal of barnacles and rust from hulls
Others - Breaking frozen slurry

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product features:

Durable wear-resistant steel casing
Customizable exterior design
Customizable logo integration
User-friendly operation and maintenance
Enhanced striking power and consistent performance

Model	Operating Pressure	Oil Flow	Impact Frequency	Chisel Diameter	Chisel. Length	Chisel Weight	Hose Size	Suitable Excavator
Unit	Kgf/cm²	L/min	Bpm	mm	mm	kg	mm	Ton
YTSX40	80-110	18-28	800-1200	40	450	3.8	13	0.7-1.3
YTSX46	80-110	25-32	600-1000	45	500	6	13	1.2-2.2
YTSX53	90-120	25-45	550-950	53	580	9	13	2.1-4.0
YTSX68	100-130	30-50	450-750	68	700	18	13	4.8-8.0
YTSX76	120-150	50-90	400-800	75	710	22	13	6.0-9.0
YTSX80	120-160	50-100	400-800	80	711	26	13	6.0-9.0
YTSX85	120-150	45-85	400-800	85	850	32	19	8.0-12.5
YTSX100	140-170	80-120	450-630	100	1000	67	19	12-16
YTSX125	150-170	90-125	400-530	125	1100	95	25	13-18
YTSX135	160-180	120-	350-500	135	1250	121	25	20-26
YTSX140	160-180	120-	250-400	140	1300	137	26	22-27
YTSX150	160-180	150	350-700	150	1300	137	25	27-35
YTSX155	160-180	170-	320-450	155	1450	193	32	26-36
YTSX165	160-180	190	280-370	165	1500	227	32	30-42
YTSX175	160-180	220-	240-320	175	1500	272	32	43-50
YTSX185	160-180	280-	294-480	185	1500	320	32	46-85
YTSX195	160-180	220- 291	240-321	195	1500	368	32	43-5
